BTECH has three levels of pump pressure:
270Mpa (40kpsi), 320Mpa(47kpsi), and 380Mpa(55kpsi)
One of these pumps combinded with one of the CNC cutting tables makes a full system.
We have tables such as 4'x4', 4'x8', 5'x10', 6'x12', 10'x 40' etc.
Below are some Example modes of BTECH waterjet machine and their specification.
|
Example Model
|
WC4WA1313H
|
WC5WA3020H
|
WC4WA2514U
|
WC5WA4020U
|
|
Style
|
Overpass
|
Cantilever
|
|
Example Picture
|
|
|
|
Max work piece Size
|
1.3m X 1.3m
(4’x 4’)
|
3m X 2m
(9.8’x6.5’)
|
2.5m X 1.4m
(4’x8’)
|
4m X 2m
(13’x6.5’)
|
|
Max Z-axis adjustment
|
150mm (6")
manual
|
|
NC SYSTEM
|
Servo Motor
|
Servo Motor
|
Servo Motor
|
Servo Motor
|
|
position Accuracy
|
0.02mm
(0.001”)
|
0.02mm
(0.001”)
|
0.02mm
(0.001”)
|
0.02mm
(0.001”)
|
|
Re-position Accuracy
|
0.01mm
(0.0004”)
|
0.01mm
(0.0004”)
|
0.01mm
(0.0004”)
|
0.001mm
(0.0004”)
|
|
Cutting Accuracy
|
0.1mm
(0.004”)
|
0.1mm
(0.004”)
|
0.1mm
(0.004”)
|
0.1mm
(0.004”)
|
|
Max working pressure
|
320Mpa
(47kPsi)
|
380Mpa
(55kPsi)
|
320Mpa
(47kPsi)
|
380Mpa
(55kPsi)
|
|
Max pressured Water Flow Rate
|
3.0L/min
(47kPsi)
|
3.5L/min
(55kPsi)
|
3.0L/min
(47kPsi)
|
3.5L/min
(55kPsi)
|
|
Multi cutting head option
|
1 only
(47kPsi)
|
Max 2, each of 0.15mm(0.006") orifice
|
1 only
(47kPsi)
|
Max 2, each of 0.15mm(0.006") orifice
|
|
Power Supply
|
220/380/400/460VAC,
50/60Hz, 25/32/40kw
|
|
Form Size
LxWxH(m)
|
2.3x2.2x1.8
1.6x0.8x1.4
0.7x0.5x1.8
|
4.2x3.3x1.8
1.6x0.8x1.4
0.7x0.5x1.8
|
3.4x2.2x1.8
1.6x0.8x1.4
0.7x0.5x1.8
|
5.2x2.8x1.8
1.6x0.8x1.4
0.7x0.5x1.8
|
|
Weight
|
2500kg
|
3200kg
|
3000kg
|
3400kg
|
Available Water Jet Machine Models
(also can be made to customer specification)
|
270MPa (40kPsi) water Jet Series
|
320MPa (47kPsi) Water Jet Series
|
380MPa (55kPsi) Water Jet Series
|
|
WC3WA1210H
WC3WA1210U
WC3WA1313H
WC3WA1313U
WC3WA2014H
WC3WA2014U
WC3WB2014H
WC3WB2014U
WC3WA2514H
WC3WA2514U
WC3WA3014H
WC3WA3014U
WC3WA3020H
WC3WA4014H
WC3WA4020U
WC3WA4030H
WC3WA6020H
WC3WA8020H
|
WC4WA1210H
WC4WA1210U
WC4WA1313H
WC4WA1313U
WC4WA2014H
WC4WA2014U
WC4WB2014H
WC4WB2014U
WC4WA2514H
WC4WA2514U
WC4WA3014H
WC4WA3014U
WC4WA3020H
WC4WA4014H
WC4WA4020U
WC4WA4030H
WC4WA6020U
WC4WA8020H
|
WC5WA1210H
WC5WA1210U
WC5WA1313H
WC5WA1313U
WC5WA2014H
WC5WA2014U
WC5WB2014H
WC5WB2014U
WC5WA2514H
WC5WA2514U
WC5WA3014H
WC5WA3014U
WC5WA3020H
WC5WA4014H
WC5WA4020U
WC5WA4030H
WC5WA6020U
WC5WA8020H
|

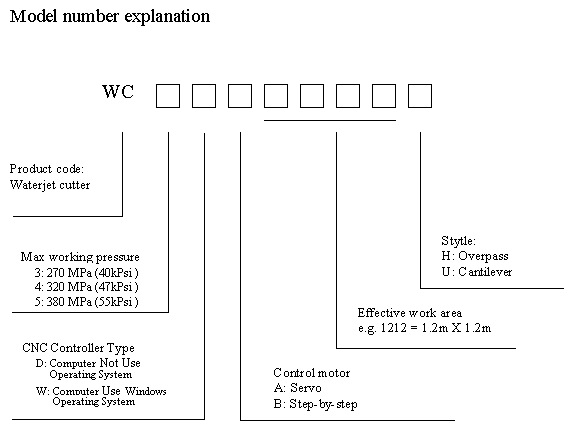

Water Jet cutter Model Number Explanation
|
|
|
